Quartz & Silica Crushing Solutions: Advanced Wear Parts Engineering
Technical Analysis: Silica Mineralogy and High-Stress Crushing Dynamics
Processing pure quartz and silica-rich rock (such as quartzite and industrial silica sand) presents the most hostile environment for comminution machinery. With a Silicon Dioxide (SiO2) concentration typically ranging between 95% and 99%, these minerals sit firmly at Grade 7 on the Mohs scale of hardness.
Processing pure quartz and silica-rich rock (such as quartzite and industrial silica sand) presents the most hostile environment for comminution machinery. With a Silicon Dioxide (SiO_2) concentration typically ranging between 95% and 99%, these minerals sit firmly at Grade 7 on the Mohs scale of hardness.
The Failure of Standard Manganese Steel (Mn13) in High-Silica Environments
Industry Consensus & Authority Backing: According to global metallurgical standards (including ASTM A128 and ISO 13521 for wear-resistant cast steels), standard 13% Manganese steel (Mn13) relies heavily on high-velocity, high-mass impacts to trigger its dislocation-induced strain-hardening mechanism.
In pure silica and quartz processing, the rock's extreme abrasivity often causes micro-ploughing and cutting before the material can work-harden. The matrix is worn away prematurely, leading to disastrous liner life. For this reason, Duma explicitly advises against using standard Mn13 for pure quartz crushing, aligning directly with international foundry consensus to save operators from premature terminal failures.
Material Challenges in Quartz Comminution
Duma's engineering team has isolated the four primary mechanical and physical failure modes encountered during industrial quartz processing:
Extreme Micro-Cutting Abrasion
Sharp-edged quartz shards act as natural cutting tools, gouging out standard alloy structures at a microscopic level.
01
High Brinell/Vickers Hardness Disparity
With quartz crystals outhardened by standard steel matrices, unhardened liner surfaces face rapid volumetric metal loss.
02
Cleavage-Plane Fracture Shock
Quartz fractures along distinct crystalline planes, creating uneven localized shockwaves across the crusher's contact plates.
03
Highly Abrasive Micro-Fines
The generation of pure silica dust accelerates three-body abrasive wear within the crushing chamber's parallel zones.
04
Recommended Crushing Solutions for Quartz & Silica
To overcome these severe mineralogical constraints, Duma provides a multi-stage, application-specific wear parts strategy.
1. Primary Crushing: Defeating Structural Rigidity
The primary stage requires heavy-duty compression to breach the unconfined compressive strength (UCS) of quartz boulders
Equipment: Jaw Crusher.

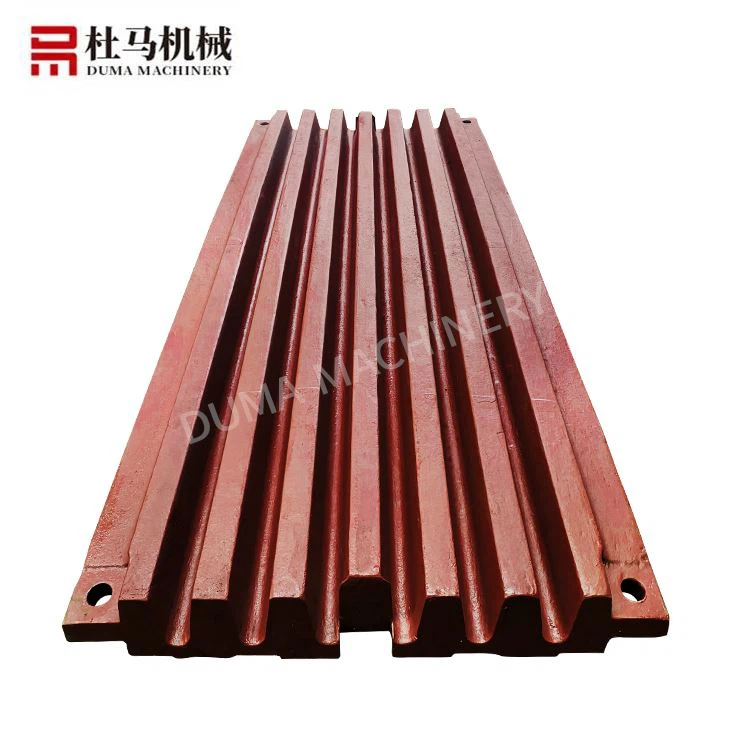

Duma Product Solution: Jaw Crusher Fixed & Swing Jaw Plates cast in Enhanced Mn18 or High-Impact Mn22.
Tooth Profile Strategy: Standard or Heavy-Duty Quarry tooth profiles are deployed based on material feed dimensions. By avoiding overly complex profiles that concentrate structural stress, these heavy-duty teeth maintain constant surface engagement, preventing stone slippage while maximizing initial fragmentation pressure.
Material Science Alignment
Cast with a highly stabilized austenitic matrix, our Mn18 and Mn22 profiles undergo proprietary microcomputer-controlled step-heating and water-toughening/quenching.
This process eliminates brittle networked carbides, ensuring the plates are "tough but not brittle", completely eliminating the risk of early cleavage-plane fractures.
2. Secondary and Tertiary Crushing: Precision Reduction & Abrasion Control
Secondary and tertiary reduction stages face the highest continuous sliding abrasion from silica particles.
Equipment: Cone Crusher.
Duma Product Solution: Cone Crusher Mantle And Bowl Liners Utilizing Titanium Carbide (TiC) Insert Technology Or Premium Mn22 Alloy.
Advanced Metallurgy Strategy:
For high-volume quartz operations, Duma integrates advanced Titanium Carbide (TiC) rods into the high-wear zones of the manganese matrix. Titanium carbide exhibits an exceptionally high micro-hardness that directly repels the micro-cutting action of SiO2 particles. If the specific operational parameters do not mathematically justify TiC inserts, Duma's engineers will transparently recommend our optimized Mn22 High-Impact alloy to balance operational costs with component longevity.
View more about Duma TiC insert bowl liner and Concave
3. Fine Grading & Shaping Stage: High-Velocity Impact
For industrial silica sand production or glass-grade quartz processing, the vertical shaft impactor requires extreme wear-resistant compounds.
Equipment
VSI (Vertical Shaft Impactor) / Impact Crusher.
Duma Product Solution
Premium VSI Rotor Tips & Impact Crusher Blow Bars.
Comprehensive Material Selection Matrix: Duma matches the exact blow bar matrix to your plant's operational conditions:
High Chrome Blow Bars
Blow Bars For Impact Crushers
Impact Plate
Impact blow bar
Impact Crusher Spare Parts
crusher blow bars
| Blow Bar / Component Type | Metallurgical Characteristics | Best Operating Conditions for Quartz/Silica |
| Ceramic / TiC Insert Bars | Titanium Carbide/Ceramic Matrix Composites | Top Recommendation: Extends wear life by 200%–300% in highly abrasive environments; radically lowers maintenance cost per ton. |
| High Chrome Steel (Cr20 / Cr26) | Hardness of HRC 60–65; high chromium carbide density | Outstanding wear resistance for high-output plants where impact fragmentation dominates over raw structural shock. |
| Alloy Steel Bars | High-tensile structural alloy steel | Suitable for high-energy, impact-intensive environments with variable feed sizing. |
| High Manganese Steel (Mn13/18/22) | Dynamic work-hardening austenitic steel | Exceptional toughness; reserved for soft-to-medium co-deposits or heavy-shock primary impactors. |
To ensure optimal return on investment, Duma provides explicit casting grades tailored to your specific quartz extraction parameters:
Technical Selection Guide for Silica Operations
Quartzite Bedrock (High UCS, High Impact):
Premium Mn22 or Ceramic Insert Alloys.
Duma Manufacturing Excellence & Quality Assurance
Every quartz-engineered wear part is designed, cast, and certified within our direct-managed 42,000 m2 foundry ecosystem.
We maintain an extensive mold library holding over 4,000 patterns-including exact profiles for Metso C/HP/GP series, Sandvik CJ/CH/CS series, Terex, and Powerscreen-ensuring perfect millimetric fitting accuracy with zero site modification required.
Full Technical Traceability
Every production run is stamped with a unique heat number. Duma provides a comprehensive technical dossier for every batch, containing certified Material Composition Reports, Micro-Hardness Profiles, Heat-Treatment Curves, and Metallographic Micrographs.
True Factory Pricing & Supply Chain Security
As a direct entity manufacturer, we eliminate trading company margins. We carry extensive ready-to-ship inventories for common parts (HP200, HP300, HP400, C80, C100) which ship within 7–10 days. Large-scale components or customized structural designs are delivered with a reliable 30-day custom casting cycle.
Uncompromised B2B Warranty
Duma backs every single industrial quartz component with a comprehensive 12-month quality warranty against raw casting defects, offering direct factory resolution with no hidden disclaimers or exclusions for highly abrasive environments.
Support You Every Step of the Way
Whether you require a direct OEM alternative or need a custom-engineered alloy variant optimized for a specific silica deposit, Duma's engineers are available to assist. If you lack original technical drawings, our team can utilize reverse engineering from worn samples to recreate, optimize, and cast high-performance replacement parts.
