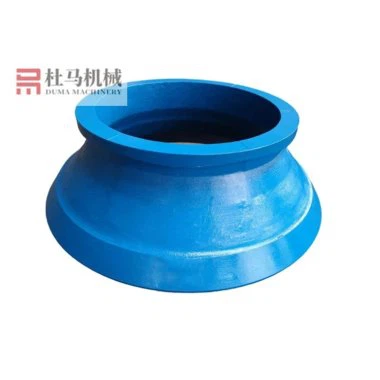

In high-stress mineral processing and aggregate production circuits, the cone crusher mantle is the primary shielding component protecting the main crushing head. Operating under thousands of tons of continuous compressive and high-impact forces, a mantle requires an flawless balance of supreme surface wear resistance and internal structural toughness. Achieving these extreme mechanical properties is entirely dependent on a highly controlled, multi-stage industrial manufacturing process.
For international procurement managers and mining engineering professionals, understanding the step-by-step metallurgical journey of a mantle from raw alloy to a precision-machined heavy component is key to identifying reliable, high-performing wear parts.
Design, Modeling, and Wear Pattern Simulation
Every high-performance mantle begins in the engineering design phase. Utilizing advanced three-dimensional computer-aided design (CAD) software and finite element analysis (FEA), design teams construct precise digital twins of global crusher chambers, including Metso HP, Sandvik CH, and Symons series. Engineers do not merely replicate original equipment dimensions; they optimize the profiles based on specific material geologies, rock abrasiveness, and target reduction ratios.
A crucial aspect of this stage is simulating specific wear profiles along the crushing cavity. Under real-world conditions, certain zones of the mantle experience significantly higher impact forces or frictional slip than others. To counteract this uneven degradation, the casting pattern is engineered with localized thickness variations, placing extra material reinforcement exactly where the heaviest gouging abrasion occurs. This proactive geometric planning eliminates localized thinning, balances the crushing chamber's reduction profile, and drastically extends the liner's operational lifecycle.
Metallurgical Engineering and Premium Material Selection
The foundational performance of a crusher liner is dictated by its initial chemistry inside the ladle. Premium heavy-duty mantles rely on high-manganese steel variants, most notably graded as Mn13Cr2, Mn18Cr2, or the ultimate impact-resistant Mn22Cr2. Controlling the carbon-to-manganese ratio is vital to unlocking the steel's unique work-hardening behavior, which allows the surface layer to rapidly transform from a ductile state to an iron-clad shell under rock impact. Selecting a certified Mn18cr2 Concave and Mantle system guarantees that the material possesses the ideal chromium additions required to withstand both severe micro-cutting and dynamic fracturing forces.
For ultra-severe crushing environments involving extremely abrasive materials like quartz, quartzite, or iron ore, advanced foundries introduce metallurgical upgrades such as composite structures. This involves strategically pre-alloying and fusing titanium carbide (TiC) inserts directly into the high-stress wear zones of the casting matrix. Opting for a heavy-duty Titanium carbide (TiC) insert bowl liner and Concave for cone crusher wear parts configuration injects ultra-hard structural blocks into the steel. These TiC pillars provide a secondary defensive barrier against gouging abrasion, maintaining cavity geometries up to two to three times longer than standard unreinforced manganese alternatives.
Controlled Induction Melting and Precision Foundry Casting
Once the chemical formulation is approved, high-purity raw steel scrap, ferromanganese, and ferrochromium are charged into medium-frequency electric induction furnaces. The melting process is monitored via real-time optical emission spectrometers to execute precise ladle analysis, driving tramp elements like phosphorus and sulfur to microscopic levels. Keeping phosphorus minimal is mandatory, as excessive amounts create highly brittle molecular boundaries that fail under heavy impact.
When the molten metal reaches its precise pouring temperature-typically controlled within a narrow metallurgical window-it is tapped into a preheated bottom-pour ladle. The molten alloy is then cast into specialized sand molds prepared using automated molding lines. The pouring speed and directional solidification are strictly managed to eliminate casting anomalies. Proper ventilation and riser placement ensure that gases escape smoothly, allowing the dense, liquid high-manganese steel to fill every corner of the mold matrix without generating shrinkage cavities, internal porosity, or surface cold shuts.
Specialized Solution Heat Treatment and Water Toughening
After the casting cools and is extracted from the sand matrix, it enters the most critical stage of high-manganese metallurgy: heat treatment. Unlike standard carbon steels that rely on traditional quenching and tempering-which would cause brittle network carbides to precipitate and ruin high-manganese alloys-a mantle must undergo a specialized multi-stage, computer-controlled solution heat treatment, also universally known as water toughening.
The cast mantles are placed inside microcomputer-governed furnaces where they are heated along a rigid, step-up temperature curve up to approximately 1050 to 1100 degrees Celsius. This prolonged soaking temperature forces all primary brittle carbides to completely dissolve, transforming the internal structure into a completely homogenous, single-phase austenitic matrix. Once this state is achieved, the furnace doors open automatically, and the mantle is rapidly plunged into a massive water-quenching pool. High-power circulation pumps force a constant, high-volume flow of cold water around the casting, instantly locking the pure austenitic microstructure in place. This gives the mantle its legendary, near-indestructible impact toughness.
High-Precision Dimensional Machining
Following the water toughening process, the mantle possesses its full mechanical potential but requires final shaping. High-manganese steel is notorious for its difficult machinability due to its instantaneous work-hardening behavior when cut. Consequently, specialized heavy-duty vertical lathes, milling machines, and dedicated grinding equipment utilizing custom carbide or ceramic tooling are required to process the casting.
Machining is focused on the critical seating surfaces and assembly interfaces. Technicians carefully turn the internal tapered cone profile and machine the top and bottom mating shoulders to micro-level dimensional tolerances. This precision ensures that when the liner is installed on-site, it fits perfectly flush against the crusher's head. A micro-precise fit allows for a uniform layer of epoxy backing compound compound to be poured, preventing any localized point-loading or micro-shifting during operation, which could otherwise lead to accelerated wear or damage to the main shaft assembly.
Exhaustive Non-Destructive Testing and Quality Control
No mantle leaves a professional production line without undergoing a comprehensive quality assurance protocol. Advanced non-destructive testing (NDT) is executed to guarantee structural reliability. Technicians conduct extensive ultrasonic testing (UT) across the entire body of the mantle to scan for sub-surface anomalies, micro-voids, or internal cooling fissures. Magnetic particle testing (MT) or liquid dye penetrant testing (PT) is subsequently applied to the machined seating borders and high-stress radii to check for any microscopic surface imperfections.
Simultaneously, quality control teams utilize precision coordinate measuring machines (CMM) and digital calipers to cross-reference every finished dimension against original engineering drawings. Hardness tests are recorded across multiple surface grid points to verify the success of the water-toughening cycle. Only after a mantle satisfies every single quantitative parameter is it stamped with a traceable heat number and certified for field deployment.
Final Assembly, Surface Finishing, and Secure Logistics
The final step involves cleaning, applying rust-preventative coatings to all machined surfaces, and finalizing any sub-assembly components, such as locking bolts or alignment pins. The mantles are then secured onto custom heavy-duty steel or wooden transport skids and wrapped in reinforced industrial packaging. This protective barrier shields the precision-machined inner seating cones from moisture, corrosion, and physical impact during sea freight or overland transit, ensuring the parts arrive at the customer's site in factory-perfect condition.
Maximize Your Crushing Productivity with Duma Factory Capabilities
Partnering directly with an asset-owning, direct-operating entity factory like Duma is the most secure strategy to optimize your wear parts procurement. Operating a fully integrated, 42,000 square meter production facility certified under ISO 9001:2015 standards, Duma manages the entire manufacturing chain-from raw material induction melting and automated step water-toughening to precision machining and rigorous NDT inspections-completely in-house.
With an extensive archive exceeding 4,000 sets of pattern molds, we provide drop-in, exact-fit compatibility for all major global cone crushing platforms. For high-demand, standard equipment lines, we maintain substantial bulk inventories enabling immediate shipment within 7 to 10 days to drastically shorten your warehouse turnaround. For specialized operational environments or unique tooth configurations, our engineering team uses reverse engineering from worn samples to manufacture custom solutions within a reliable 35 to 45-day production cycle.
Every wear liner we manufacture is backed by a comprehensive 12-month quality warranty against structural casting defects. Whether you are seeking a large-scale wholesale supply or wish to place a small trial order to evaluate our premium Cone Crusher Replacement Parts field lifespan under your specific mine geology, our technical team is ready to provide material certificates, cavity optimization suggestions, and direct support through every stage of your operation.
