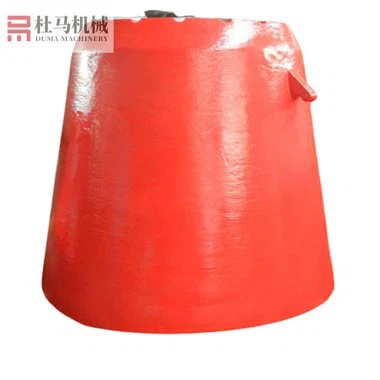

In large-scale primary crushing stages, gyratory crushers serve as the operational heart of high-tonnage mining and aggregate operations. Among the severe-wear zones within these massive machines, the Gyratory Crusher Upper Mantle bears the brunt of relentless high-impact, compressive, and abrasive forces as raw run-of-mine (ROM) ore is reduced.
Because geological deposits vary drastically in hardness, abrasiveness, and moisture content, standard off-the-shelf liners often fail to deliver optimized cost-per-ton efficiency. Can the Gyratory Crusher Upper Mantle be customized? The absolute answer is yes. However, authentic customization goes far beyond minor dimensional tweaks.
As an ISO 9001:2015 certified direct-manufacturing foundry spanning a 42,000 m² footprint, Duma specializes in precision engineering and metallurgical upgrades for heavy-duty crusher wear parts. In this technical article, we analyze how customization optimizes your primary crushing circuit and the specific engineering methodologies utilized to achieve it.
1. Geometric Optimization: Tailoring the Chamber Profile
A primary reason to initiate a custom upper mantle project is to redesign the crushing chamber profile (the cavity geometry). A standard liner design assumes a generic feed size and a uniform material flow. In reality, mismatched profiles lead to uneven wear tracking, localized packing (choking) in the crushing chamber, and high peak power spikes.
- Advanced Reverse Engineering: At Duma, our specialized engineering teams utilize high-precision 3D laser scanners and digital reverse engineering software to map worn liner samples or reference components with micron-level accuracy.
- Chamber Profile Customization: By shifting the taper angles or adjusting the thickness distribution along the upper mantle's vertical axis, we can manipulate the material nip angle. This redistribution optimizes the material flow velocity, guarantees balanced wear across the entire mantle surface, and maximizes hourly throughput while eliminating localized stress fatigue on the crusher's main shaft.
2. Metallurgical Upgrades: Going Beyond Standard Manganese
High manganese steel is the undisputed foundation for gyratory crusher mantles due to its classic work-hardening response under severe shock loads. However, the exact alloy composition must be customized to align precisely with your specific ore mineralogy.
Duma operates an in-house smelting workshop driven by microcomputer-controlled automated induction furnaces, allowing us to customize the metallurgical matrix of your upper mantles dynamically:
- Standard High Impact (Mn13Cr2 / Mn18Cr2): Formulated for standard limestone or medium-hard copper/iron ores, where high impact is present to rapidly drive the surface hardness from a baseline HB200 up to HB500+.
- Extreme Abrasion Configurations (Mn22Cr2): Engineered specifically for high-silica ores, taconite, or granitic deposits. The elevated manganese and chromium ratios reinforce the matrix, preventing rapid micro-cutting and abrasive scratching before the work-hardening mechanism fully takes effect.
- Premium TiC (Titanium Carbide) Inserts: For specialized geological challenges exhibiting extreme abrasiveness but lower impact energies, Duma can custom-insert high-hardness Titanium Carbide columns into the high-wear zones of the upper mantle. This composite design extends operational wear-life by 20% to 40% compared to conventional alloys.
3. Strict Microstructural Control: The Foundation of Reliability
Custom geometry and elite chemistry mean nothing if the casting contains internal defects or brittle microstructures. Because a gyratory upper mantle is subjected to continuous cyclic loading, any structural irregularity will cause catastrophic fracturing.
Duma's full-scale manufacturing integration guarantees structural integrity through rigorous, in-house technical controls:
- Controlled Solution Heat Treatment: Our castings undergo a strict, automated water-toughening and quenching protocol driven by high-power forced circulation pumps. This precise process suppresses brittle grain-boundary carbide networks, ensuring a flawless, single Austenite microstructure that conforms to ASTM A128 international standards.
- Non-Destructive Testing (NDT) Audits: Every custom upper mantle is audited via Ultrasonic Testing (UT) across its highest-thickness cross-sections to verify a 100% solid interior free of hidden shrinkage cavities, as well as Magnetic Particle Testing (MT) to capture micro-fissures along seating surfaces.
4. Micro-Level Fit Accuracy for OEM Compatibility
A customized wear part must fit seamlessly onto the crusher's center shell assembly without requiring field modifications or grinding. Thermal distortion during high-temperature water quenching is an inevitable physical reality in heavy casting.
To eliminate installation friction, Duma routes all heat-treated upper mantles through our dedicated machining workshop. We machine critical seating surfaces, taper bore diameters, and locking nut threads to exceptionally tight dimensional tolerances.
This meticulous machining ensures precise Fit Accuracy and seamless compatibility with major global OEM gyratory crusher series, including:
- Metso Superior Series (such as 60-89, 60-110, MK-II configurations)
- Sandvik CG Series primary gyratory crushers (such as CG800 series)
Why Sourcing Direct from a Self-Operating Foundry Protects Your Capital
Navigating the custom component lifecycle requires deep engineering collaboration. Relying on trading intermediaries or unverified third-party brokers introduces severe communication risks, extended lead times, and multi-layered middleman markups.
By partnering directly with Duma, you leverage a streamlined manufacturing framework:
📊 Custom Procurement Comparison Matrix
| Operational Metric | Trading Intermediary / Broker | Duma Direct-Manufacturing Foundry |
| Engineering Integration | Relies on third-party drawings; high margin for error. | Direct consultation with in-house reverse engineering & metallurgical teams. |
| Pattern Development | Outsourced toolmaking, driving up initial capital costs. | Mass reservoir of over 4,000 active molds; in-house pattern shop. |
| Quality Accountability | Fragmented production path; unverified traceability. | Complete technical dossier per batch (MTR, hardness log, heat charts, UT reports). |
| Supply Flexibility | Restrictive minimum order volumes due to broker overhead. | Highly flexible MOQ policies tailored for small-scale trial validation orders. |
Conclusion: Transform Wear Parts into a Performance Asset
Customizing your Gyratory Crusher Upper Mantle is an investment that yields substantial operational dividends. By tailoring the physical profile to optimize chamber dynamics and adapting the alloy matrix to match your ore characteristics, you systematically reduce wear velocity, slash unscheduled maintenance downtime, and minimize your true cost-per-ton.
Whether you require a standard high-quality replacement profile dispatched quickly from our mass inventory or an aggressively engineered material upgrade designed from a worn site-sample, Duma possesses the physical manufacturing assets and technical expertise to deliver.
Ready to maximize your primary crushing efficiency? Contact the Duma engineering team today to submit your drawings, request a comprehensive wear analysis, or secure a tailored quotation for your upcoming liner replacement cycle.
