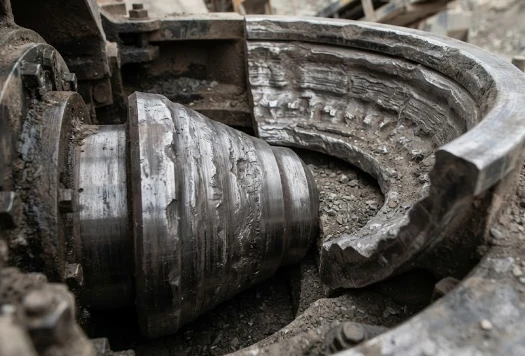

You ordered a fresh set of manganese liners three months ago. They are already half-worn. The next scheduled shutdown is not for another six weeks, and you are watching the crusher gap creep wider every shift. Your throughput is holding - barely - but your cost-per-tonne is climbing in the background, quietly and steadily.
This is the situation that pushes most procurement and maintenance managers to finally ask the question: is it time to move beyond standard manganese steel?
The honest answer is: sometimes yes, often no. The upgrade decision depends entirely on your specific operating conditions, not on which material sounds more advanced. This guide gives you a practical framework for making that call - based on wear mechanics, real cost analysis, and the types of conditions where each material genuinely outperforms the other.
Why High Manganese Steel Is Still the Right Choice for Most Applications
Before discussing titanium carbide at all, it is worth defending manganese steel on its merits. Austenitic manganese steel (commonly Mn13, Mn18, or Mn22, where the number refers to manganese content as a percentage) has been the dominant liner material in crushing for over a century, and there is a good reason for that.
Its defining property is work hardening: under repeated impact, the surface of a manganese liner transforms from a relatively soft starting hardness of around 200 HB (Brinell Hardness) to a hardened working surface of 450 to 580 HB or higher - without the core of the liner becoming brittle. This means the liner grows tougher exactly where it needs to be, in direct contact with the rock.
This makes high manganese steel almost irreplaceable in two scenarios:
High-impact primary crushing: run-of-mine ore with large, irregular feed blocks; blasted rock with unpredictable sizing; any application where tramp iron (stray metal in the feed) is a realistic risk. A brittle liner in these conditions does not just wear out - it fractures.
Variable feed operations: if your material type or feed size changes frequently, manganese steel adapts. It does not require consistent impact conditions to function safely.
If your current manganese liners are wearing at a rate that aligns with your planned maintenance intervals, and your cost-per-tonne is within budget, the correct decision is to keep running them.
What Titanium Carbide Actually Does Differently
Titanium carbide (TiC) insert technology works on a different principle. Rather than relying on impact-activated work hardening, TiC insert parts embed ultra-hard ceramic rods (sintered titanium carbide with a hardness of approximately 2,800 to 3,200 HV - Vickers Hardness, a scale used for very hard materials - compared to roughly 450 to 580 HV for a fully work-hardened manganese surface) directly into a manganese steel matrix during casting.
The result is a composite: the manganese base retains impact toughness and absorbs shock loads, while the TiC rods create localized zones of extreme abrasion resistance at the contact surface. When rock enters the crushing chamber, it meets the carbide rods first. These rods wear at a fraction of the rate of manganese steel under abrasive sliding contact.
In field applications with highly abrasive materials, Titanium carbide (TiC) insert bowl liner and Concave sets have demonstrated wear lives of 1.5 to 2.5 times that of equivalent standard manganese liners - in some iron ore and quartzite applications, the gain is closer to the upper end of that range.
The trade-off is cost: TiC insert parts typically carry a price premium of 40 to 80 percent over standard manganese castings. Whether that premium pays off depends entirely on the wear life gain in your specific application.
DUMA Titanium carbide (TiC) insert bowl liner and Concave for cone crusher wear parts
The 5 Operating Signals That Justify an Upgrade
The following conditions, individually or in combination, indicate that your current manganese liners are not the right tool for the job - and that TiC inserts are worth serious evaluation.
1. Your rock is genuinely hard and abrasive (Mohs hardness 6.5 or above)
Materials such as quartzite, iron ore, river gravel, and high-silica granite create wear through a mechanism called abrasive wear: small, sharp particles grind and cut the liner surface continuously. In these conditions, manganese steel does not get the sustained impact load it needs to fully work-harden, so the hardened surface never develops properly and the liner simply erodes.
Silica content is a useful proxy: if your feed material exceeds 60 to 65 percent silica, abrasive wear is almost certainly your dominant failure mode.
2. Your liner replacement frequency is compressing your maintenance windows
If you are replacing cone crusher liners every 4 to 6 weeks in a medium-throughput operation, the labor and downtime cost of those changes may already exceed the material cost difference between manganese and TiC. A rule of thumb: if your annualized liner replacement labor and downtime cost exceeds $15,000 to $20,000 USD, the math on a TiC upgrade becomes favorable at relatively modest wear-life improvements.
3. Abrasion is your failure mode, not impact cracking
Inspect your worn liners before deciding. If the profile shows smooth, polished wear (uniform reduction across the working surface), the mechanism is abrasion and TiC inserts will help. If you are seeing edge chipping, corner fractures, or cracking on the liner body, the mechanism is impact-related and switching to TiC will not solve the problem - and could make it worse, since carbide inserts are more brittle than plain manganese under severe impact.
4. Your feed is consistent and controlled
TiC insert technology works best when the feed is relatively uniform in size and composition. Jaw crusher applications with consistent quarry feed are an excellent example: a Titanium Carbide (TiC) Insert Fix And Swing Jaw Plate For Jaw Crusher running on steady quartzite or granite feed can deliver a doubling of service life compared to standard Mn18 plates, with significantly fewer planned shutdowns per year.
Primary gyratory or jaw crusher operations receiving ROM (run-of-mine) ore with highly variable block sizes are a less reliable fit, because large unexpected impacts can damage the TiC rods at the contact zone before the surrounding matrix can absorb the load.
5. You can calculate a cost-per-tonne payback within 12 months
This is the final filter. Use the following simplified calculation:
(TiC price per liner set) ÷ (estimated TiC lifespan in tonnes) vs. (Manganese price per liner set) ÷ (estimated manganese lifespan in tonnes)
Add the downtime cost differential (fewer change-outs per year multiplied by your hourly production value). If the TiC option shows a 15 percent or greater cost-per-tonne improvement, and the payback period is under 12 months, the upgrade is financially justified.
When to Hold Back
Two conditions consistently produce poor outcomes for TiC insert liners:
High-impact primary crushing with irregular or oversized feed. Manganese steel handles this regime far better. For standard Concave and Bowl Liners in primary cone or gyratory applications taking large ROM feed, Mn18 or Mn22 remains the appropriate specification.
Low-volume or short-campaign operations. If a crushing project runs for only 3 to 4 months before the material type changes, the TiC premium may never recoup. Calculate the payback window before committing.
A Note on Second-Generation TiC Composite Design
The most effective TiC insert liners are not simply "carbide studs embedded in steel." The rod placement pattern, carbide volume fraction, and matrix grade all matter significantly. Poorly placed inserts create uneven wear profiles that can shorten liner life below even standard manganese performance.
Titanium carbide (TiC) insert bowl liner and Concave parts produced by experienced foundries will specify the carbide rod configuration for the target application - including rod density, placement zone (typically concentrated at the high-wear strike face), and matrix grade (Mn14Cr2 through Mn22Cr2 per ASTM A128, the standard specification for austenitic manganese steel castings). When requesting a TiC upgrade quote, ask the supplier to confirm these parameters for your specific material and crusher model.
Summary: The Upgrade Decision in Practice
High manganese steel is not an outdated material waiting to be replaced. It remains the technically correct choice for high-impact, variable-feed, and primary crushing applications. The goal is not to upgrade for its own sake - it is to match the liner material to the dominant wear mechanism in your specific operation.
Upgrade to TiC inserts when:
Your feed is hard, abrasive, and consistent (Mohs 6.5+, high silica)
Abrasion is the confirmed failure mode on your worn liners
Your replacement frequency is compressing maintenance windows
Cost-per-tonne analysis shows a payback within 12 months
Stay with manganese when:
Impact loading is high or unpredictable
Feed size and material type vary frequently
You are in a primary crushing role with ROM ore
The campaign is too short for the premium to recover
The correct material selection decision is worth more, in operational terms, than any other procurement optimization at your crushing circuit.
Frequently Asked Questions
Q: Can TiC insert liners be used in jaw crushers, not just cone crushers? Yes. TiC insert technology is available for jaw crusher wear parts, including fixed and swing jaw plates. They are best suited for jaw crushers processing consistently hard and abrasive rock such as quartzite, river gravel, and iron ore, where standard manganese plates wear too quickly. They are not recommended for primary jaw crushers handling large ROM blocks with unpredictable sizing.
Q: How do I confirm that abrasion, not impact, is my dominant wear mechanism? Examine your spent liners. Smooth, polished, and evenly reduced working surfaces indicate abrasive wear. Rough, chipped, or fractured edges - particularly at liner corners or near the feed entry zone - indicate impact-dominated wear. If you are seeing both, assess which zone shows the greater material loss.
Q: Will TiC inserts work with my existing crusher without modification? In most cases, yes. TiC insert liners are cast to the same dimensional specifications as standard manganese liners for the same crusher model. No mechanical modification to the crusher is required. Confirm OEM fit compliance with your supplier before ordering, particularly for older or less common crusher models.
Q: What manganese grade is used as the matrix in TiC insert liners? The base material is typically Mn14Cr2 or Mn18Cr2 austenitic manganese steel (ASTM A128 compliant), with chromium added to improve abrasion resistance in the matrix between the carbide rods. This provides better baseline hardness than plain Mn13, which matters in the zones not covered by carbide rods.
Q: Is the 40 to 80 percent price premium for TiC liners the right number to use in ROI calculations? Use it as a starting reference, but request an actual quote for your specific liner profile and crusher model. The premium varies significantly depending on the carbide volume fraction and rod configuration specified. A TiC liner optimized for your application will carry a different price than a generic catalog part - and the wear life difference will also vary. Ask your supplier for application-specific wear life data or references from similar operations.
