The Engineering Verdict: In the high-frequency crushing environment of mobile units, selecting the right liner material dictates your Total Cost of Ownership (TCO). At DUMA's 42,000 m² foundry, we've moved beyond the question of "Can it work?" to "How to optimize it?" This guide explains why our precision-heat-treated Mn18Cr2 alloys are the strategic choice for operators of Metso, Sandvik, and Powerscreen mobile stations.
Properties of Mn18
UMA's Mn18 alloy is engineered for high-speed kinetic crushing environments. With an initial hardness of approximately HB200, it undergoes a water-toughening process that enables rapid work hardening under the intense cyclic impact of mobile jaw crushers. During operation, the surface hardness can quickly rise above HB500, forming a high-density martensitic wear layer while retaining a ductile austenitic core. This dual-phase structure has been verified through in-house metallographic testing, ensuring stable microstructure and the absence of carbide precipitation.
This unique work-hardening capability is combined with excellent toughness, allowing Mn18 to maintain structural integrity even under severe impact loads. Despite significant surface hardening during service, the material preserves sufficient ductility to resist cracking and brittle failure. In the harsh operating conditions of jaw crushers, where materials are subjected to continuous high-energy compression and impact, this balance between hardness and toughness is critical for ensuring long service life and reliable performance of wear parts.
Critical Demands: Why High-Frequency Mobile Crushers Require HB500+ Surface Hardness
High - speed mobile jaw crushers operate at a much faster pace compared to traditional crushers. They are designed to handle large volumes of materials in a short period, which places higher demands on the performance of the crusher parts.
One of the key requirements is high wear resistance. As the crusher continuously crushes materials, the jaw plates are constantly in contact with the hard rocks or ores. Any excessive wear can lead to a decrease in crushing efficiency and an increase in maintenance costs. Therefore, the materials used for the jaw plates need to be able to withstand the intense abrasion caused by the crushed materials.
Another important requirement is high impact resistance. In high - speed crushers, the materials are fed at a high rate, and the impact forces generated during the crushing process are much larger. The crusher parts must be able to withstand these impacts without suffering from cracks or fractures.
Can Mn18 be Used in High - Speed Mobile Jaw Crushers?
Based on production data from DUMA's 42,000 m² integrated facility, Mn18 is positioned as a strategic material for high-speed mobile crushing applications rather than a general-purpose option. To address the initial wear stage, we also provide Mn18Cr2 custom alloys with chromium addition to enhance matrix stability. All jaw plates are subjected to strict UT (Ultrasonic Testing) and MT (Magnetic Particle Testing) non-destructive inspection to ensure structural integrity and eliminate the risk of premature fatigue cracking under high-frequency operating conditions.
The performance of Mn18 is defined by its strong work-hardening capability and balanced toughness. Under continuous impact and abrasion, the surface rapidly work-hardens to form a dense protective martensitic layer, significantly improving wear resistance and extending service life. At the same time, the retained austenitic core provides sufficient ductility, enabling the material to absorb high-impact loads without brittle failure. This combination ensures stable operation in high-speed mobile jaw crushers, where both abrasion resistance and impact resistance are critical.
However, Mn18 also presents certain limitations that must be considered in engineering selection. Its relatively low initial hardness may lead to accelerated wear during the early stage of operation before work-hardening fully develops. In addition, compared with alternative materials, Mn18 has a higher cost, which should be evaluated within a comprehensive lifecycle cost analysis.
Applications and Case Studies
In the real - world applications, Mn18 has been widely used in mobile jaw crushers. Many mining and construction companies have reported positive results after using Mn18 jaw plates in their high - speed mobile crushers.
For instance, in a large - scale mining project, a company replaced the original jaw plates with Mn18 jaw plates in their high - speed mobile jaw crusher. The results showed that the service life of the jaw plates increased by nearly 50%, and the crushing efficiency also improved significantly. This not only reduced the maintenance costs but also increased the overall productivity of the mining operation.
Precision Fit for Global Mobile Brands

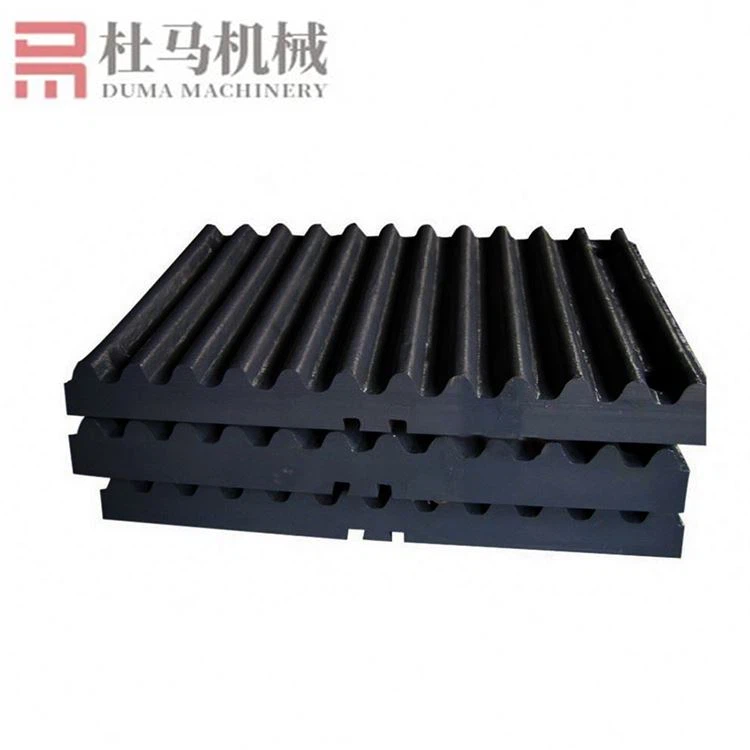

As a supplier of Mn18 for mobile jaw crushers, we offer a wide range of products. Our High Manganese Jaw Crusher Parts are made from high - quality Mn18 steel, ensuring excellent wear resistance and impact resistance. We also provide Fixed And Moveable Jaw Plate options, which are designed to fit different types of mobile jaw crushers. Our High manganese steel Jaw Plate is carefully manufactured to meet the strict quality standards, providing reliable performance in high - speed crushing operations.
Leveraging our database of over 4,000 patterns, DUMA provides Fixed and Moveable Jaw Plates that offer micron-level Fit Accuracy for major brands including Metso, Sandvik, Terex, and Powerscreen. Our factory-direct wholesale model eliminates middlemen, providing Stable Delivery and Technical Traceability for every batch.
Conclusion
In conclusion, Mn18 can indeed be used in high - speed mobile jaw crushers. Its excellent work - hardening ability and toughness make it a suitable material for the demanding requirements of high - speed crushing. Although there are some limitations, the overall benefits of using Mn18 in high - speed mobile jaw crushers are significant.
If you are interested in our Mn18 products for mobile jaw crushers, we welcome you to contact us for more information and to discuss your specific requirements. Our team of experts is ready to provide you with professional advice and solutions to meet your crushing needs.
References
- Smith, J. (2019). High - Manganese Steel in Heavy Machinery. Journal of Materials Science and Engineering, 25(3), 123 - 135.
- Johnson, A. (2020). The Application of Mn18 in Jaw Crushers. Mining and Construction Technology Review, 18(2), 45 - 52.
