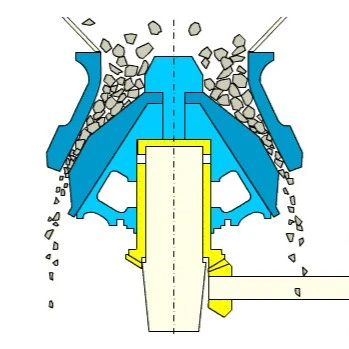

The Cone Crusher is a staple in the mining and aggregate industries for medium and fine crushing stages. By utilizing a moving cone that gyrates at high speed around a fixed cone, it crushes rock and ore through compression, impact, and inter-particle laminating.
Combined with specialized cavity designs and optimized nip angles, cone crushers offer high throughput, low energy consumption, and excellent product cubicity (minimizing flaky particles). They are widely used to bridge the gap between primary crushing and grinding/sand making, meeting the refined crushing needs of various hard materials.
Industry Insight from Duma Machinery
As a long-term manufacturer of cone crusher wear parts, Duma Machinery works closely with mining and aggregate operators to optimize crushing efficiency through proper cavity selection and liner material design. Our engineering experience with Mantles and Concaves across different crushing stages provides practical insight into how cone crushers achieve both productivity and product shape control.
The Core Mechanism: Compression Crushing
Unlike Impact Crushers or Hammer Crushers that rely on high-energy impact, the Cone Crusher utilizes a "Compression" crushing method.
• Continuous Squeezing: Material is subjected to continuous compression and bending between the two cone surfaces.
• Uniform Gradation: This method ensures that the particle size distribution remains uniform, whether processing soft or medium-hard materials, resulting in a stable product gradation.

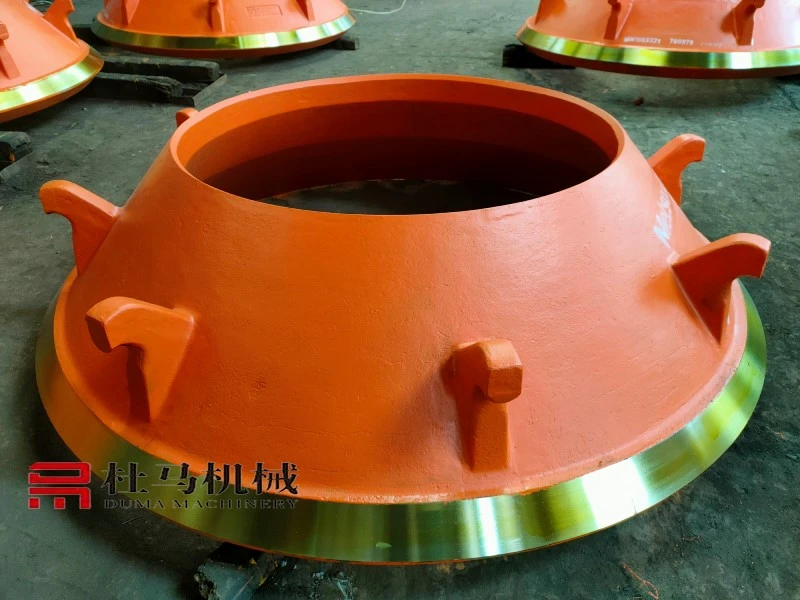

Modular Cavity Design: The Role of Mantle and Concave
To adapt to different feed sizes and product requirements, cone crushers offer a modular approach to the crushing chamber.
• Versatile Cavity Options: Operators can choose from a range of cavity types, including Extra Coarse, Coarse, Medium, Fine, and Extra Fine.
• Rapid Conversion: By simply replacing the Mantle (Moving Cone Liner) and Concave (Fixed Cone Liner), the cavity profile can be converted within minutes.
• Seamless Transition: This allows a single machine to perform coarse, medium, or fine crushing tasks on the same production line, meeting diverse final particle size requirements for different materials.
Automatic Hydraulic Adaptation and Overload Protection
The cone crusher's ability to handle varying material hardness and feed rates is driven by its intelligent hydraulic (or spring) system.
- A. Automatic Load Tracking (Overload Protection) "Load variation" refers to fluctuations in feed hardness or volume (e.g., tramp iron entry or sudden feed surges). Without an adaptive system, these spikes would force the discharge opening wider, leading to coarse, uneven output.
• Hydraulic System: Sensors monitor internal pressure in real-time. If hard rock or tramp iron causes pressure to spike, the system automatically releases pressure, allowing the Mantle to yield temporarily. Once the obstruction clears, the hydraulic pump quickly restores pressure to reset the original discharge setting. Hydraulic locks ensure the setting does not drift.
• Spring System: Common in traditional models, springs use pre-tension to balance crushing force. They compress to allow passage during overloads and spring back to reset the opening. While slightly slower than hydraulics, they offer stable operation for medium-intensity applications.
- B. Controlling Output via Hydraulic Cylinders The discharge particle size is determined by the gap between the Mantle and Concave (the Closed Side Setting).
• Hydraulic Adjustment: Extending the cylinder moves the cones closer, narrowing the gap for finer output. Retracting the cylinder widens the gap for coarser output. This ensures stable, controllable particle shape and distribution even under full load.
Precision Control: Stepless Adjustment
A distinct advantage of modern cone crushers over traditional "shim adjustment" (which offers only fixed, stepped increments) is Stepless Hydraulic Adjustment.
• High Precision: The discharge opening can be continuously adjusted within a set range (e.g., 0-5mm) with a precision of up to ±0.5mm. This meets strict engineering specifications for aggregate size.
• Operational Modes:
• Manual: Suitable for minor, intermittent adjustments via control valves.
• Automatic: Integrated with particle size detection equipment, the control system automatically adjusts the cylinder based on real-time feedback to maintain precise output size.
High Speed and Optimized Cavity Geometry
The combination of high rotational speed and specific cavity design enhances Selective Crushing.
- High Speed:
Increased RPM extends the material's retention time in the chamber, allowing the machine to selectively crush particles at structural defects-breaking large rocks first while sparing smaller ones to prevent over-crushing (fines generation).
- Specialized Cavity Design:
• Stepped Upper Wall: Increases gripping force on the material, preventing upward slippage and improving chamber fill rates.
• Parallel Lower Zone: Ensures material undergoes multiple compression cycles in this zone for uniform sizing.
• Optimized Nip Angle (16°-23°): Increases the contact area of the material layer, boosting the efficiency of inter-particle laminating crushing. This multi-directional force promotes a cubic shape and reduces needle/flake content.
Stable Operation and Uniform Liner Wear
The continuous rotation of the two cone bodies ensures that the material layer is crushed progressively from bottom to top. This results in:
• Smooth Operation: Low vibration and power consumption.
• High Throughput: Even for coarse feed materials.
• Concentrated Wear: Wear is primarily focused on the Mantle and Concave liners, which are designed for easy replacement, keeping overall maintenance costs low.
Conclusion: By integrating modular cavity profiles, intelligent hydraulic adjustment, high-speed gyratory motion, and uniform wear design, the Cone Crusher achieves efficient, cost-effective, and shape-controlled crushing for coarse, medium, and fine materials. It effectively replaces multiple traditional crushers, simplifying process flows and optimizing investment for mining and aggregate operations.
For operators seeking to optimize cone crusher performance through proper liner selection and cavity configuration, working with an experienced manufacturer is essential. Duma Machinery provides application-based recommendations and OEM-compatible wear parts to support stable, long-term crushing operations.
